R16H GPS Parolee Tracking Device

High-security GPS ankle monitor and parolee tracking device for parolees, sex offenders, and pretrial offenders. Compliant with CalECPA, GDPR, and Privacy Act, the R16H offers multi-mode positioning, anti-tamper alerts, and IP68 waterproofing.

parolee tracking device
GPS ankle monitor
electronic monitoring device

4G Advanced Ankle/Wrist Parolee Tracker/Bracelet

R16H is a high-security 4G positioning wearable device that can be worn on the wrist and ankle. It uses advanced multi-mode positioning and anti-tampering mechanisms, with accurate positioning, long battery life, and can be charged at any time using a power bank. It provides real-time location tracking and reliable alarm functions for law enforcement and correctional agencies, and can be used for community correction monitoring, pretrial supervision, parole monitoring, juvenile justice monitoring, and tracking of people with special health problems (mental patients, Alzheimer’s disease, autism, etc).

GPS IconWrist & Ankle Wearable Bracelet

This judicial GPS tracker supports both wrist and ankle wearing options. Designed for flexibility and comfort, it suits a wide range of law enforcement needs, including parole, probation, and home detention monitoring.

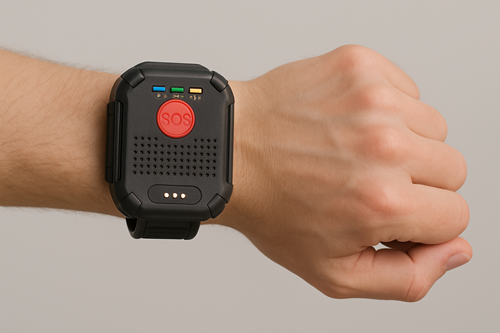

Wear R16H on Wrist

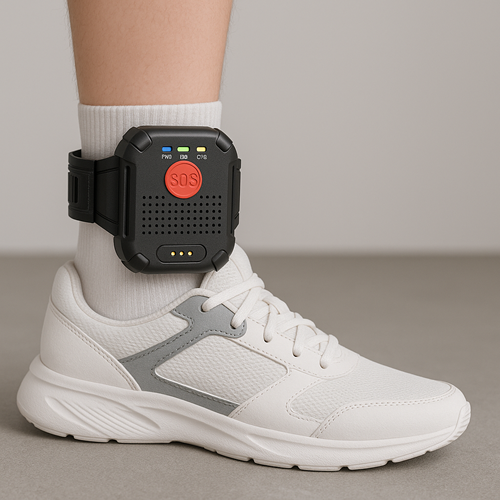

Wear R16H on Ankle
GPS/BeiDou Location out Door
Supports dual-mode GPS/BeiDou satellite positioning outdoors and automatically switches to the best signal source
WiFi Location in Door
Automatically collect nearby WiFi hotspot information and upload it to the server while user in door.
LBS Location in Door
Automatically upload GSM/LTE base station information connected to the device while user in door.
Blue-Tooth Location in Door
Automatically collect nearby Blue-tooth hotspot information and upload it to the server while user in door.

GPS IconSeamless Multi-Mode Positioning

Waterproof IconRugged IP68 Waterproof Design

R16H meets IP68 level of waterproof and dustproof, and has a waterproof depth of 5 meters. Each product undergoes strict waterproof testing before leaving the factory to ensure the effectiveness of waterproofing.
Withstand 5m water immersion
Shower Protection
Dust Proof
Waterproof Full Inspection

ankle braceletAdvanced Anti-Tamper Protection

Engineered with a secure anti-tamper structure and built using high-strength materials. The device issues both voice and vibration alerts if tampering or loosening is detected, ensuring immediate wearer feedback and monitoring system response.

A 0.3mm thick stainless steel sheet is embedded inside the silicone strap to enhance the strength of the strap.

Special screw lock combined with stainless steel lock protective cover, difficult to disassemble.

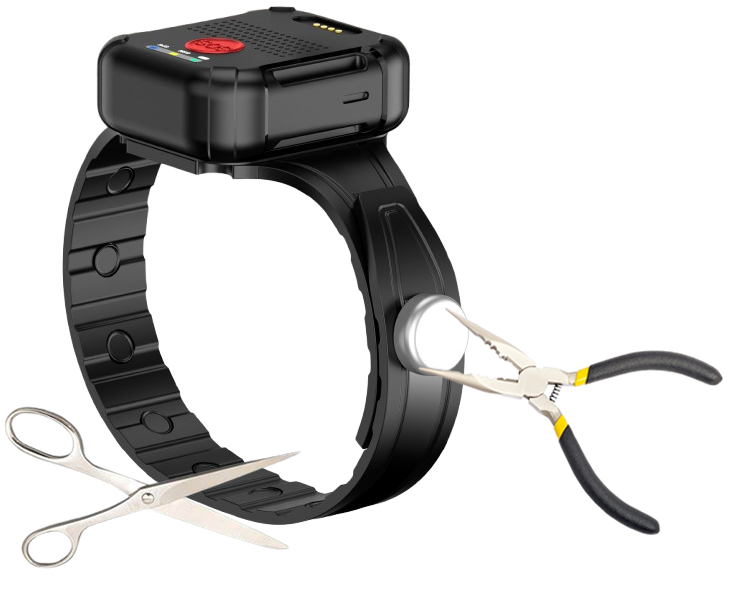

Loosening the buckle or cutting the strap will trigger the bracelet's continuous sound and vibration alarm, and the alarm message will be uploaded to the web platform and APP in real time.

The bracelet cannot be turned off by pressing the button after it is turned on. It will automatically turn on when charging after it is turned off due to exhaustion.

Battery IconExtended Battery Life

Equipped with a high-capacity internal battery for long standby time. Includes a wearable, portable power bank with fast-charging technology (2A current) for convenient recharging anytime, anywhere.

①Built-in 2500mAh Capacity Internal Battery.
②Last up to 4 days with 1 minutes reporting interval.
③Last up to 15 days with 5 minutes reporting interval.
LONG LASTING BATTERY
①Automatically sleep while no motion detected.
②Fast location acquisition outdoors using AGPS.
③Automatically turn off GPS when indoors.
INTELLIGENT POWER SAVING
①5000mAh Portable Power Bank.
②Charge R16H While User Wear on Wrist/Ankle.
③Fully Charge in 1.5h with 2A Fast Charging Technology.
EXTENDED BATTERY LIFE

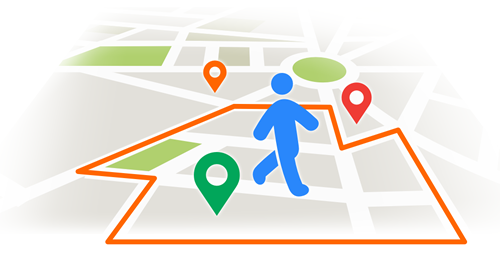

GeoFence IconGeofence-Based Alerts

Allows custom-defined entry and exit zones. When a boundary is crossed, the device provides both voice and vibration alerts to the wearer, and real-time notifications to the monitoring platform.
Voice&Vibration reminder on R16H
The device gives the wearer continuous audio and vibration alerts if user leave or enter the designated zone.
Alarm on Web Application & APP
The GEO-Fence alarm will be sent to the web application and mobile APP, the APP will pop up a notification while screen is locked.
Real Time Alarm Alert SMS
The R16H will send real-time reminder text message containing the location link and time to setting phone numbers.

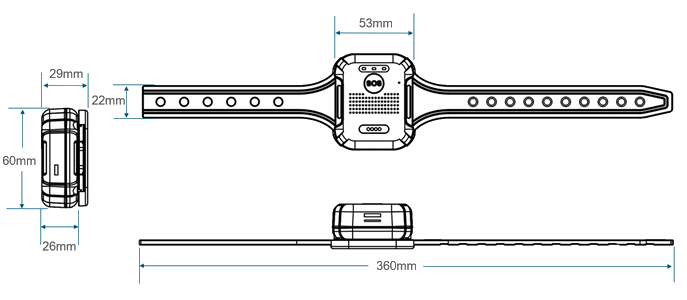

Specifications and Dimension

LTE Module QUECTEL EC600U-EU/AU Support Frequency 4G&2G
SIM Card Single NANO SIM Card Location GPS & Beidou & LBS & Wi-Fi(optional)
Outdoor Location Accuracy Less Than 5m Internal Battery 2500mAh
Working Time 3/14 days with 1/5 minutes interval Portable Power Bank Battery 5000mAh
Motion Sensor G-Sensor NFC Optional
Size(Straps Excluded) 60mm*53mm*26mm Weight(Straps Included) 205g
Memory Store maximum 2000 location points in GSM/LTE signal blind area Water Proof Level IP68
Work Temperature -20~60℃ Work Humidity 5%~95% Non-condensing

Standard Packing

R16H Bracelet
Power Bank
Strap Buckle
Buckle Cover
L Wrench
Magnetic Cable
USB Cable

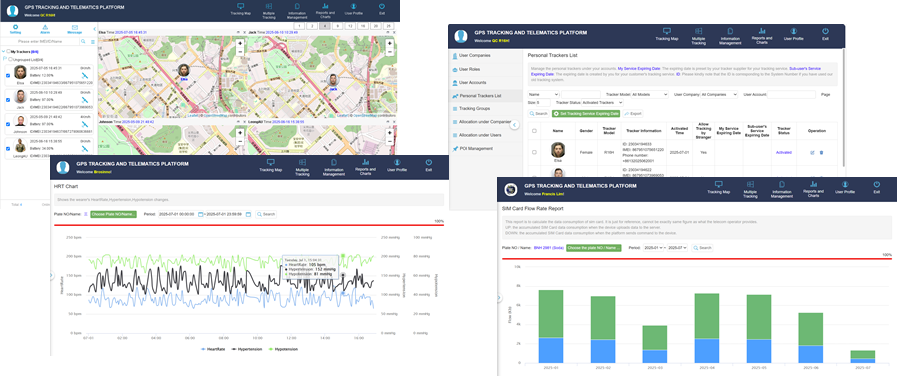

GeoFence IconCross-Platform Monitoring Software

Compatible with both web-based and mobile app platforms under a single account login. Supports historical route playback, location point review, and past alert record retrieval for efficient supervision.

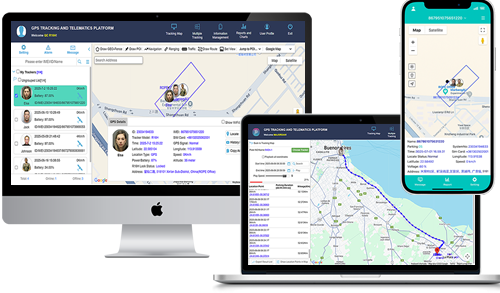

Web Application & Mobile APP
Support any browser on Windows/Linux/Mac/Unix, Android and iOS APP is available, support alarm notification on APP.
Cluster System Based on Cloud
This software can be deployed on cloud servers and regular servers, supporting multi-server clusters and scaling to handle over 1 million devices.
Encryption and Security
The software uses SSL for encrypted communication, which can resist injection and flooding attacks. Whitelist and Cloud Shield further enhance security.
API Integration & Customization
You can use our REST API to integrate, or communicate directly with the device according to its communication protocol

About US

ROPE INNOVATION CO., LTD is a direct manufacturer with more than 10 years of experience in the GPS tracking industry. Its headquarter locates in Shenzhen China. Rope is a true innovator of high-quality GPS tracker devices and has satisfied the needs of customers from 120 countries around the world.

Within 10 years development, Rope had built up a large manufacturing base including molding, plastics shaping, SMT and full sets of production lines. In order to improve the quality and safety of products and meet the requirements of various customers.

Rope had developed Cloud-Cluster host Tracking Software and successfully provided various tracking solutions, such as construction machinery management, vehicle fleet management, and multiple solutions for tracking people, pets, and assets.

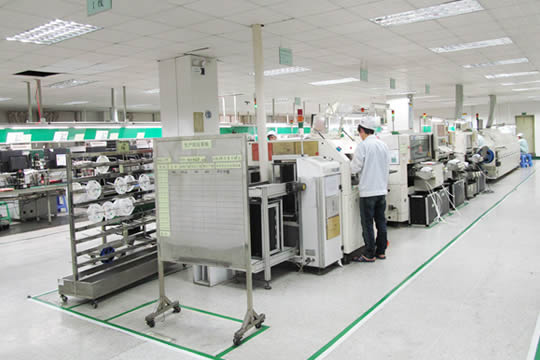

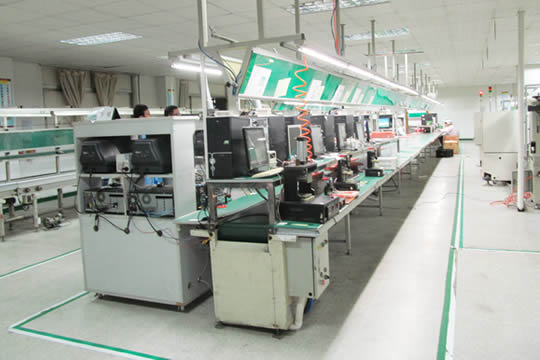

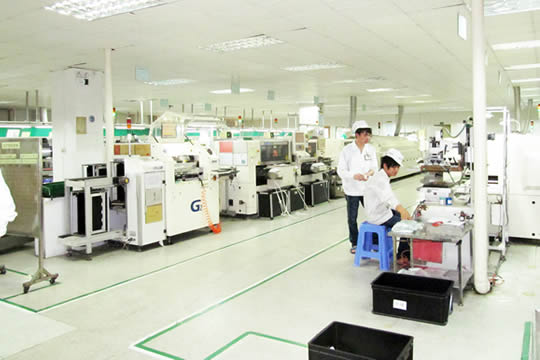

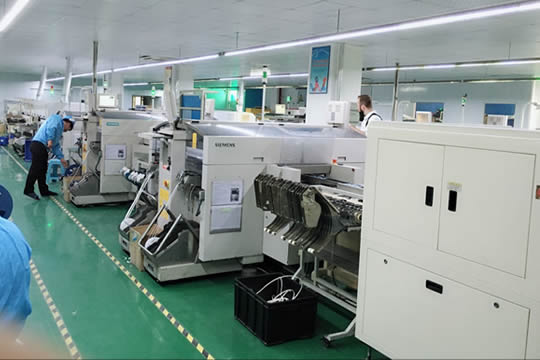

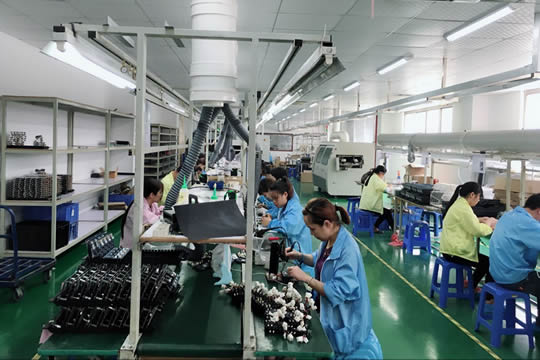

OUR OFFICE & FACTORY PRODUCTION LINE
